Home > Hot Melt Adhesive Film >

48CM Width Single Side Adhesive Film PET Substrate 180mic Acrylic

Product Categories
Shenzhen City Hunter-Men Plastics Products Co., Ltd.
Contact Now

48CM Width Single Side Adhesive Film PET Substrate 180mic Acrylic

  • 1
  • 2
  • 3

Brand Name : Hunter Men

Model Number : HT01-YM

Certification : SGS,ISO9001:2015

Place of Origin : Shenzhen,China

MOQ : 1Yards

Price : Negotiable

Payment Terms : Western Union, L/C, D/A, D/P, T/T,Paypal

Supply Ability : 300 Rolls/ Day

Delivery Time : 1-15days

Packaging Details : by rolls or Sheets

Raw Materals : Acrylic Pressure Sensitive Hot Melt Film

Substrate Material : Release Paper or PET

Usage : Embroidery Badges and patches

Color : Transparent

Thickness(mic) : 180mic

Width(cm) : 48CM

Hot Pressing Temperature(°C) : 100-150℃

Processing Time(seconds) : 3-8 seconds

Contact Now

Hot Melt Adhesive Film Single Side With Acrylic Self Adhesive Film Sheets

Description:

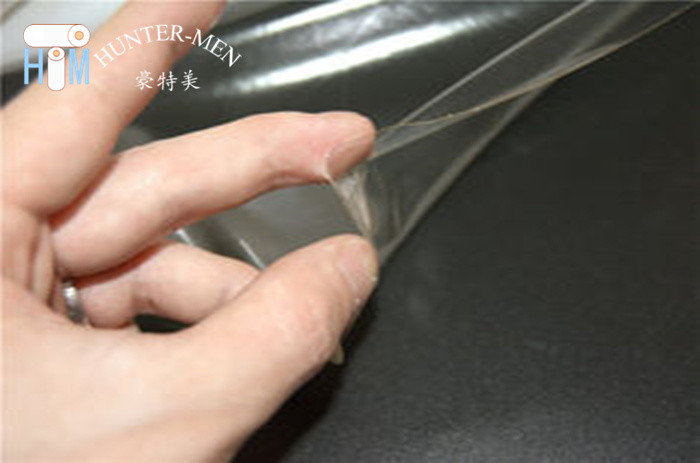

It is a self-adhesive hot melt film. Double-layer film structure: one layer is hot-melt adhesive (it's haven't viscosity at room temperature, it needs to be warmed and glued), and the other layer is pressure sensitive adhesive of propylene acid (self-adhesive layer have viscosity at room temperature, release paper).Self-adhesive layer can be below 140 degrees temperature without dropping glue, without losing glue property, and can be repeatedly pasted, in line with European demand indicators.

48CM Width Single Side Adhesive Film PET Substrate 180mic Acrylic

Applications:

Development direction and application of HT01-YM is for adhesion in embroidery patches , phone case, handcraft and so on.

48CM Width Single Side Adhesive Film PET Substrate 180mic Acrylic

Physical Characteristics:

Color Transparent Release liner Glassine release paper
Density 1.2±0.02g/cm³ Conventional Thickness 180mic
Melting point 65-85 (Hunter-men) Width 48cm
Melt Flow Index 75±15g/10min (ASTM D1238-04) Length 100yards
Operating Temperature 93-116℃ (Hunter-men) Finished Products 48cm*100yards
Lamination
Mechanical Mold Temperature 100℃-130℃
Hot Pressing Time 3-5 seconds
Rheological temperature 0.3-0.6mpa



Remarks:The above information and technical support are based on our current knowledgeand experience.They are witout guarantee and legal claim.To obtain the best processing conditions, we suggest customers test the samples before using our products

Package & Storage:
Packaging 1PC/PE FILM, 100meters/roll, 1 rolls/CTN, or it's up on the customer's option
Storage Conditions Stored in dry unopened packaging at room temperature at least 2 years.

Support Customization Production:

We have many years experience for control the products quality, and we can customize to product as your opinions.According to customer details demands for new product development, we can offer technical support and production as customer opines.Please contact with us for any about the product questions.

1. According to the Film Performance:

Melt Point: 70-110℃,

Melt Index:10-2000g/10min( Condition:190℃/2.16KG ASTMD1238-04),

Thickness:0.05mm-1mm,

Width: 5mm-1500mm,

Length:1M-1000M/roll,

Colors:All of colors

2. According to the base material:

A. Single/Double side silicone glassine release paper,

B. Single/Double side silicone kraft release paper,

C. Single/Double side silicone PE coated paper,

D. Matte / Glossy PP paper,

E. Matte / Glossy Pearlescent paper,

F. Single/Double side silicone PET release film,

G. Without base materials

H. You also can choose the base materials thickness and grammage.

3.Custom Punching Hot Melt Adhesive Film(Support custom as your demands.)

A.Conventional Aperture:1.4mm,1.5mm,1.8mm

B.Conventional Hole Spacing:5mm*5mm or 5.8mm*3.7mm

48CM Width Single Side Adhesive Film PET Substrate 180mic Acrylic

We can tailor hot melt film as your business and demands.

Contact Me:
Lily

What'sapp: +8615817445470

Wechat: +8615817445470

Tel: +8615817445470

Email: lily@szhotmelt.com

If you have any other questions, please tell us soon, and we will try our best to offer our better service and products for you.
